PART NUMBERING |
| |
- |
□□□ |
□ |
□□ |
□ |
□□ |
(1) |
(2) |
(3) |
(4) |
(5) |
(6) |
|
| |
(1) Series
(2) Inductance
(3) Tolerance
(4) Dimension
(5) Material
(6) Internal Serial No. |
|
|
|
| |
|
|
| |

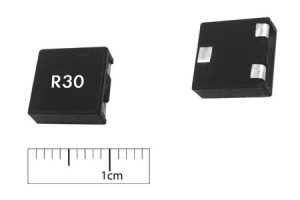

Features
|
• Low profile ultra high current inductor.
• Super low resistance.
• Current rating up to 45Adc.
• Manufactured with high temperature power iron core and the fine rectangular magnet wire.
|
|
| |
Applications
|
• Computers and handheld electronic equipment
• VGA cards and other power devices
• DC/DC converters
• Energy storage applications
• Input-Output filter applications
|
|
| |
Configurations & Dimensions
|
|
SERIES |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
|
EB-57H |
13.2 Max. |
13.2 Max. |
4.4 Max. |
6.5 Typ. |
7.5 Typ. |
5.9 Typ. |
3.9 Typ. |
3.6 Typ. |
3.6 Typ. |
2.5 Typ. |
|
EB-58H |
13.2 Max. |
13.2 Max. |
5.5 Max. |
6.5 Typ. |
7.5 Typ. |
5.9 Typ. |
3.9 Typ. |
3.6 Typ. |
3.6 Typ. |
2.5 Typ. |
|
|
| |
Electrical Characteristics
|
| SMD or THT(PTH/DIP) |
SIZE |
New Part No. |
Old Part No. |
Inductance or (uH/nH/mH) |
Impedance (Ω, Typ.) |
Ω or uH/nH/mH |
DCR(Ω, Max.) |
Ω or mΩ |
IDC or Irms(mA, Max.) |
mA or A |
| A(L) |
B(W) |
| SMD | 13.2 | 13.2 | EB-14A□57H□□ | STCG1240C-1R4□ | 1.400 | 0 | uH | 0.0034 | Ω | 22 | A | | SMD | 13.2 | 13.2 | EB-22A□57H□□ | STCG1240C-2R2□ | 2.200 | 0 | uH | 0.0043 | Ω | 20 | A | | SMD | 13.2 | 13.2 | EB-80B□57H□□ | STCG1240C-R80□ | 0.800 | 0 | uH | 0.0025 | Ω | 34 | A | | SMD | 13.2 | 13 | EB-12A□58H□□ | STCG1245C-1R2□ | 1.200 | 0 | uH | 0.0015 | Ω | 34 | A | | SMD | 13.2 | 13 | EB-19A□58H□□ | STCG1245C-1R9□ | 1.900 | 0 | uH | 0.004 | Ω | 22 | A | | SMD | 13.2 | 13 | EB-27A□58H□□ | STCG1245C-2R7□ | 2.700 | 0 | uH | 0.0047 | Ω | 20 | A | | SMD | 13.2 | 13 | EB-36A□58H□□ | STCG1245C-3R6□ | 3.600 | 0 | uH | 0.0056 | Ω | 18 | A | | SMD | 13.2 | 13 | EB-48A□58H□□ | STCG1245C-4R8□ | 4.800 | 0 | uH | 0.0064 | Ω | 16 | A | | SMD | 13.2 | 13 | EB-64A□58H□□ | STCG1245C-6R4□ | 6.400 | 0 | uH | 0.01 | Ω | 13 | A | | SMD | 13.2 | 13 | EB-30B□58H□□ | STCG1245C-R30□ | 0.300 | 0 | uH | 0.0006 | Ω | 45 | A | | SMD | 13.2 | 13 | EB-70B□58H□□ | STCG1245C-R70□ | 0.700 | 0 | uH | 0.0012 | Ω | 38 | A |
|
• Tested at 25°C.
• Temperature rise : 40°C Typ. at Irms
• Inductance drop : 25% Typ. at Isat
• Operating temperature : –55°C to +105°C
• Storage temperature : –40°C to +85°C
|
|
